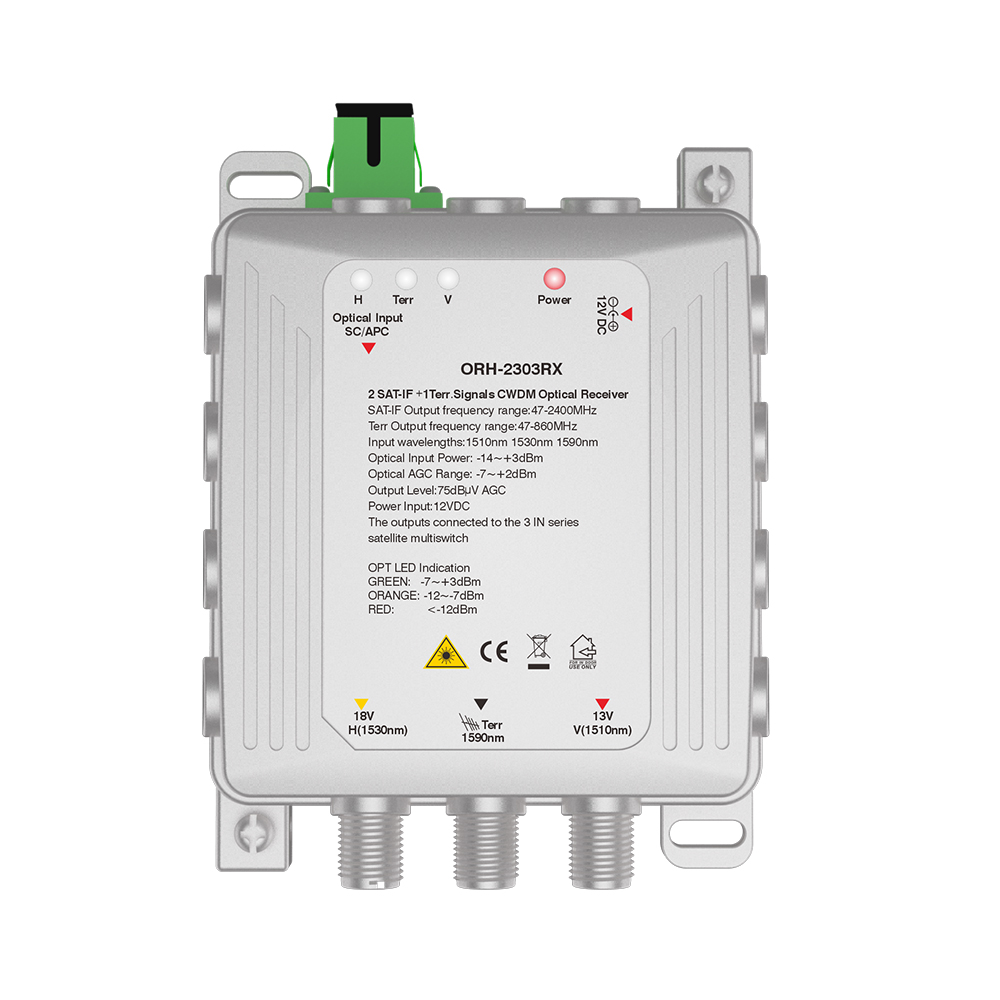

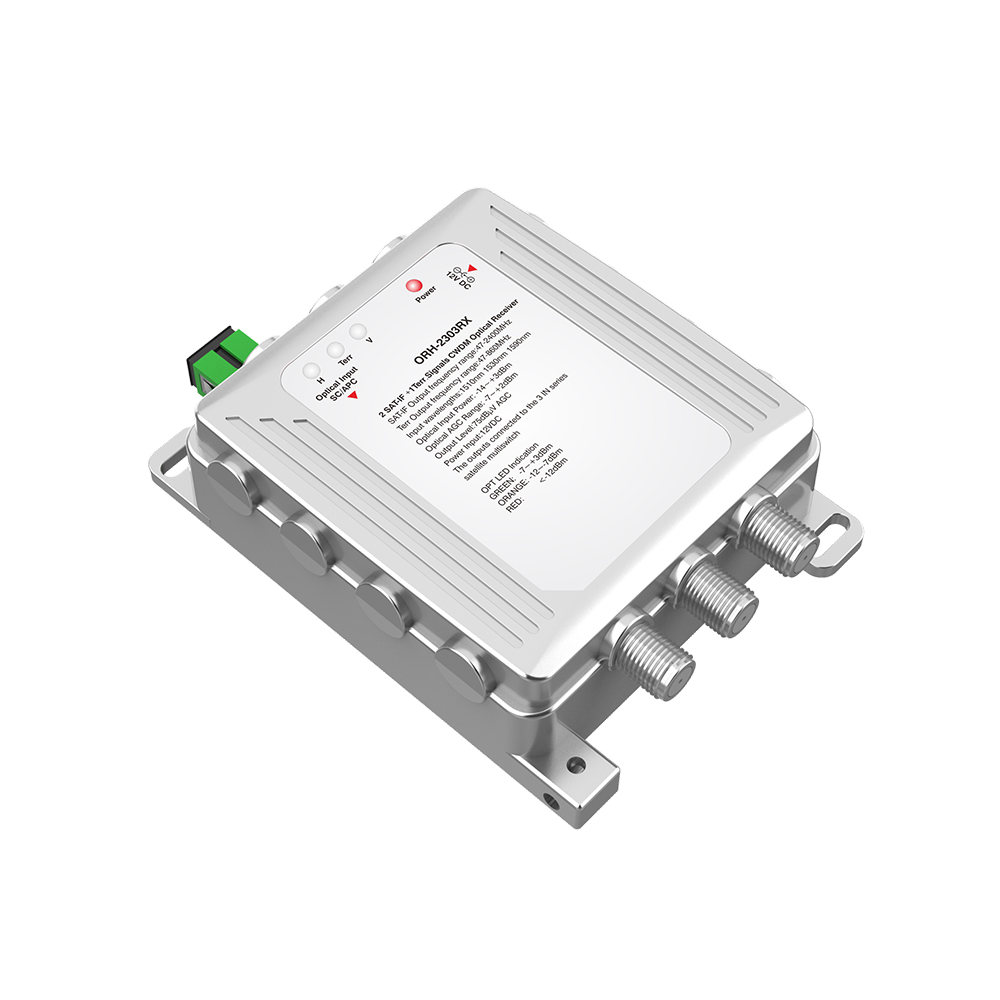

ORH-2303RX 2 SAT-IF+1 Terr.Signals CWDM Optical Receiver
※ Designed for Satellite Optical System
※ Wide operating frequency range:47-860MHz/47-2400MHz
※ Excellent Linearity and flatness
※ Single-mode fiber high return loss
※ Build-in GaAs amplifier active devices
※ Ultra low noise technology
※ Build-in CWDM,Using High linear PD
※ Outputs connected to the 3 IN series satellite multiswitch
※ build-in optical AGC function
※ Red-LED for power indication
※ Smaller size and easier installation
※ Wide operating frequency range:47-860MHz/47-2400MHz
※ Excellent Linearity and flatness
※ Single-mode fiber high return loss
※ Build-in GaAs amplifier active devices
※ Ultra low noise technology
※ Build-in CWDM,Using High linear PD
※ Outputs connected to the 3 IN series satellite multiswitch
※ build-in optical AGC function
※ Red-LED for power indication
※ Smaller size and easier installation
Note: The Optical Receiver power supply can be derived from the power Adapter or satellite multiswitch
1. Testing conditions: 3.0% OMI(optical modulation index) , input 59ch PAL-D and a group satellite signals;
2.Note1：input analog modulation signal 75dBuV/CH or digital modulation signal 68dBuV/MHz , PAL and NTSC is
a analog signal, DVB-S/T/C is digital signal, and SAT-IF use DVB-S Modulation;
3. Note2: CNR、CSO and CTB testing condition, receiver input optical power is -1dBm;
4. Note3:using ITU-T G.652 optical fiber testing
